Webhook

The Webhook channel provides a way to build a custom integration with Chatlayer that acts as a channel.

PreviousGoogle Assistant [Deprecated soon]NextWeb

Last updated 4 months ago

Was this helpful?

With the Webhook channel you can enrich the information sent via certain . For example, instead of using the Facebook Messenger or Whatsapp channel, you can use Webhook to send messages to Messenger or Whatsapp.

The Webhook channel should not be confused with , designed for offloading to human agents.

Send and receive messages with Webhook

Chatlayer provides:

  • a Webhook message API endpoint: to send a user message to the bot

Register a Webhook API

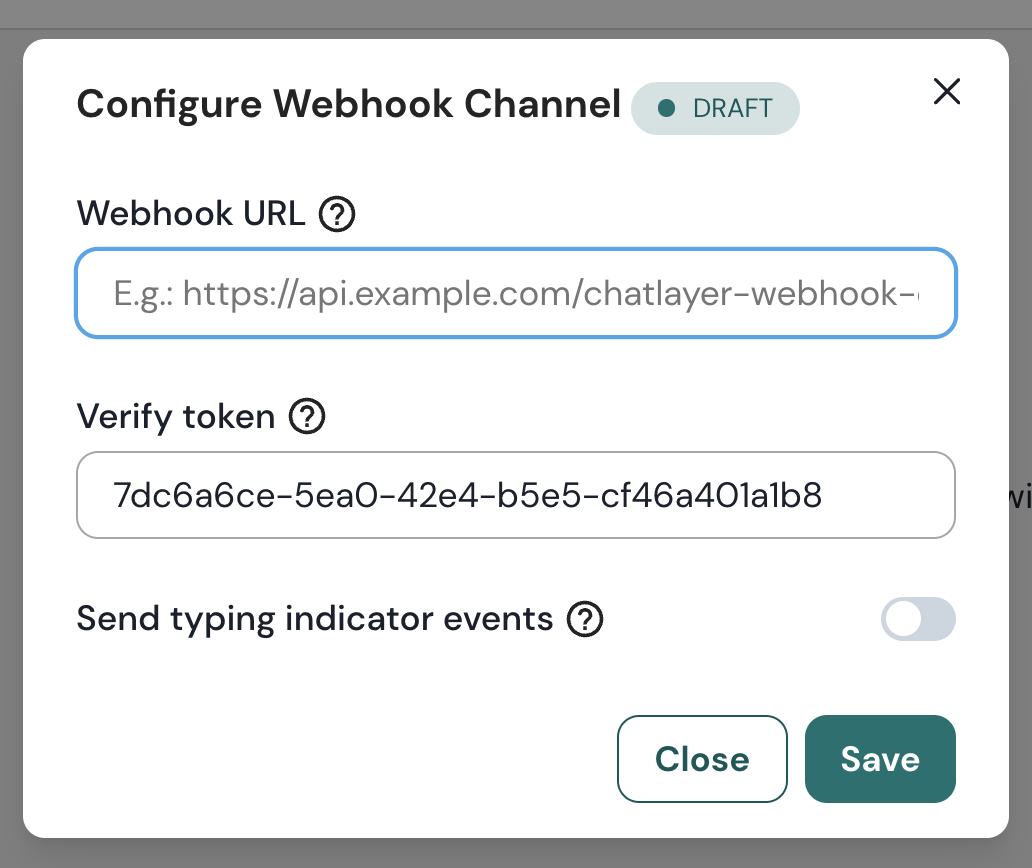

To add a Webhook API to your bot:

1
2

Configure the Webhook URL field.

This URL must either be publicly available, or at least available from our platform's IP range. We strongly advise using HTTPS for this endpoint.

3

Optionally, configure the Verify token field.

This can be any arbitrary string, but we recommend you use the one provided, which was randomly generated.

Webhook messages

POST customer webhook endpoint URL configured in Chatlayer.ai

When a user message is sent to the Webhook message API, the bot response(s) will be sent to the customer Webhook endpoint URL.

The bot response body payload object will include the bot message. This message can have a different object structure based on the message type.

  "recipient": {
    "id": "default-b94215f0-0c7e-11ea-9c43-7174cba76asdfoijadsfoiadsiojadfiojasodijfb12"
  },
  "verifyToken": "eenheeluniekeverifytoken",
  "message": {
    "text": "test tekst message"
  }

Message objects

A bot message sent to the customer Webhook endpoint URL and returned as response to a user messages can have different object structures, depending on the message type. Want to learn how to build these message objects? Read about it here:

a Webhook configuration: Enables notifications when the bot responds to user messages sent via the Webhook Message API, as detailed . This API operates in near real-time, allowing you to trigger event-based actions immediately upon receiving a bot response. This setup facilitates seamless integration of the bot's flow logic into your application or messaging platform.

The overall mechanism is loosely based on Pubsub protocol and relies on HTTP request containing the bot message response being sent to a consumer Endpoint URL. The customer webhook Endpoint URL can be configured on our platform as described in .

to your bot.

here
this section
Add a Webhook channel
Chatlayer messages specifications
channels
direct
Webhook offloading

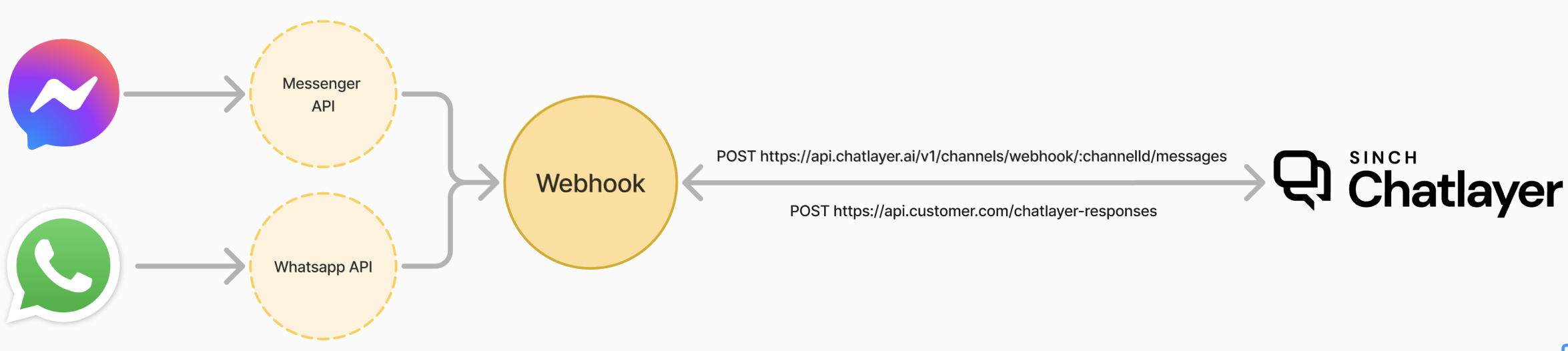

By using the Webhook channel, the channel of choice is indirectly connected to Chatlayer.
