A Chatlayer API step is available in the blocks to enable you to create bot messages based on user-specific information and other external data, and to redirect your users to different flows based on your own business logic.

You can use this solution on any platform that supports receiving and responding to HTTP requests.

The API step sends a request to your backend server.

Send an API request

To configure your API step:

  1. Drop an block to your .

  1. Click on API.

  2. Configure your parameters. See below for more details.

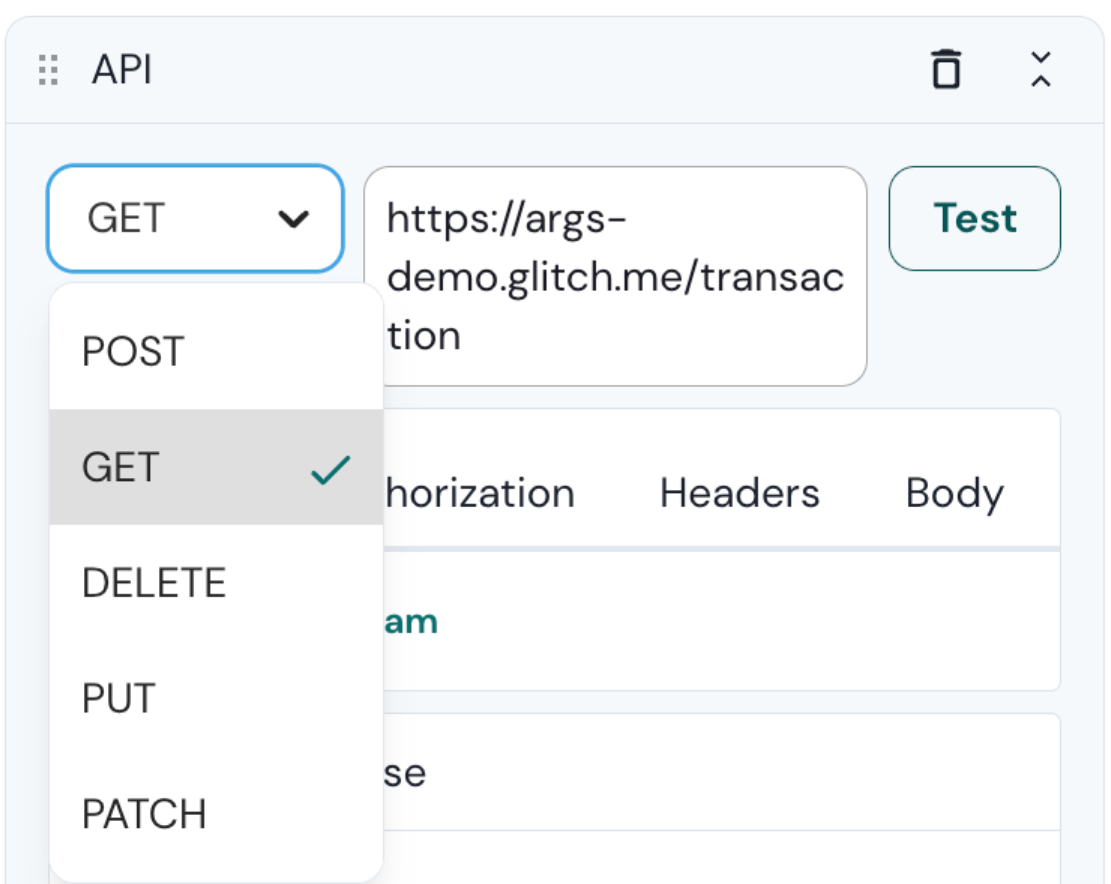

HTTPS methods

The API step supports 5 HTTPS methods:

  • POST

  • GET

  • DELETE

  • PUT

  • PATCH

You can only define a request body when your request method is POST or DELETE.

Under the Query tab, add query parameters and/or a body payload by defining key value combinations. Each key can has 3 possible value types:

  • text: static text.

  • dialogstate: select a dialog state from the dropdown. The dialog state ID will be stored as value for the key. This ID can be used to redirect the user to a certain dialog state based on your business logic when sending back the API response.

The Authorization tab has the following components:

  • Basic auth: will display the fields to fill username and password.

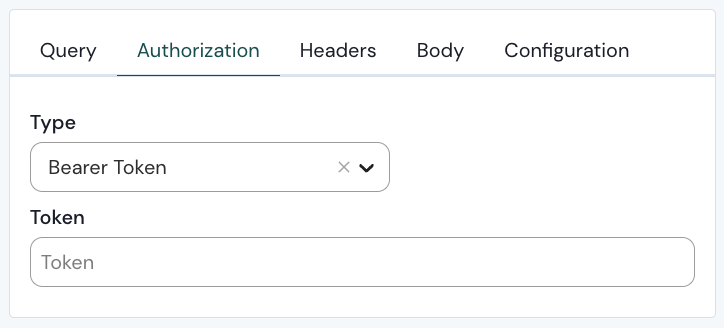

  • Bearer token: will display the Token field to be filled in.

The Headers tab is where you configure your headers.

Body is where you can define a request body request in all HTTPS methods.

Under the Body tab, add query parameters and/or a body payload by defining key value combinations. Each key can has 3 possible value types:

  • text: static text.

  • dialogstate: select a dialog state from the dropdown. The dialog state ID will be stored as value for the key. This ID can be used to redirect the user to a certain dialog state based on your business logic when sending back the API response.

  • The amount key will have the value of user session variable transfer_amount (ex: 500).

  • The destination key will have the value of user session variable transfer_destination (ex: Elon Musk).

  • The accountType key will have the value of user session variable card_type (ex: savings_account).

  • The transactionSuccess key will have the dialog state identifier for the ‘successful transaction’ dialog state. This identifier can be used in the response of this API request to redirect the user to a new dialog state.

  • The transactionNoMoney key will have the dialog state identifier for the ‘unsuccessful transaction’ dialog state. This identifier can be used in the response of this API request to redirect the user to a new dialog state.

  • The test key will have a value of ‘5’.

This will result in the following body payload:

{
    "amount": 500,
    "destination": "Elon Musk",
    "accountType": "savings_account",
    "transactionSuccess": "successful transaction",
    "transactionNoMoney": "unsuccessful transaction",
    "test": 5
}

Listen for an API response

You do not need to configure the API plugin to listen for a response. This is done automatically and the API step will listen for what your API returns.

API return variables

The API step supports 3 types of return variables:

  • session: A session object for saving data in to the user session. The session has 2 mandatory fields:

    • namespace: a key namespace. The data object will be stored in this namespace key in the user session. You can access this object in Chatlayer.ai by using interpolation: {namespace.dataKey}.

    • data: an object which will be saved in the user session data in the namespace key.

  • action: an object defining an action such as redirecting the user to a next dialog state in the conversation.

    • nextDialogstate: a dialog state identifier to redirect the user to a next dialog state in the conversation flow.

The above 3 options are executed in the order shown above: session variables are set first, then messages are sent and then you will jump to the next dialog state.

Example

You can find a JSON example for these 3 cases in the code snippet below:

const result = {
  session: {
    namespace: 'myNamespace',
    data: { variable: 'test123' },
  },
  messages: [{ type: 'text', config: { textMessages: [{ text: 'random message 1' }] } }],
  action: {
    nextDialogstate: 'dialogstate-123-abc',
  },
};

Make sure you include the correct content type in the header: content-type: application/json;

Example

This example demonstrates one API endpoint for transferring an amount of money from an account type (regular or savings) to someone. We will redirected the user to a certain dialog state based on the transaction result.

app.post('/transaction', function (req, res) {
  let nextDialogstate;
  const { amount, destination, accountType, transactionSuccess, transactionNoMoney = req.body;

  // get account type (regular - savings account)
  const account = account_synonyms[accountType];

  if( accounts[account].amount + accounts[accounthlimit — amount < ) {
    nextDialogstate = transactionNoMoney
  } else {
    // transfer amount
    accounts[account].amount —= amount;
    nextDialogstate = transactionSuccess;
  }

  res.json({
    action: {
      nextDialogstate,
    },
    session: {
      namespace: 'account',
      data: {
        limit: accounts[account].limit,
        amount: accounts[account].amount
      }
    },
  })
});

We receive the body payload object as defined in the Chatlayer API step. If the user doesn’t have a sufficient amount of money on his account we set the next dialog state to ‘transactionNoMoney’. Else we subtract the desired amount and set the next dialog state to ‘transactionSuccess'.

As a response for the request we send the next dialogs state to redirect the user to that state and we save the amount of money and the limit of his account in his session data under the namespace account. This data can be used in that next dialog state.

As an alternative solution you could also send that chat message as a response of the API plugin requests by using the messages key.

variable: a variable. The value of the variable will be stored as value for the key. Dot and array notation are supported, for example: users[0].firstname

variable: a variable. The value of the variable will be stored as value for the key. Dot and array notation are supported, for example: users[0].firstname

In this example, representing a money transfer, we send five keys in the body payload of an HTTPS POST request to our API endpoint .

Configuration is where, if you have an API configuration in , you will see them here.

If , if the API response sends agent messages back to the user and the agent supports multiple languages, don’t forget to send the user language in the request. The user language is available in the variable locale. Your backend service can use this language setting to send back the response in the user's preferredLanguage.

messages: an array of messages to send back to the user interface channel. The structure of different message types (such as text, buttons, quick replies, carousels, lists, media,etc) is available in the .

user session
user session
https://chatlayer-integration-demo.glitch.me/transaction
Settings>API
your bot is multilingua
l
user session
chat message structure
Action
Action
canvas
Add an API Action step.
The Query tab inside your API step.
The Authorization tab inside your API step.
Basic auth Authorization.
Bearer token Authorization.
The Headers tab inside your API step.
The Body tab inside the API step.
Example of body payload.
The Configuration tab inside an API step.
