Create a web widget demo page

This guide will explain to you how to set up a custom demo page to showcase your chatbot as seen in this example: https://banking-bot-demo.glitch.me/. This can be done using Glitch, where you can create apps in your browser for free.
1. Create a web widget in Chatlayer
Create a web widget with the configuration of your liking via Channels. Read more about that here.
2. Create account on Glitch
Create an account on glitch.com.

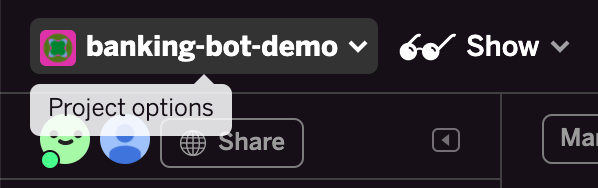

Create a new project and name it the way you want your link to be shown:
3. Create html page
Now click on the Index.html page in the left column. There, paste the following block of code between the two lines.
Pay close attention to:
Line 97: Use the link of the web widget in Chatlayer there
Replace 'onload='chatlayer()'' with 'onload="initChatlayer()'
Line 92: Please enter the name of your glitch web page here
Line 81: If you want to change the background colour of the web page, you can do so by entering the HEX colour code
1
 <!DOCTYPE html>
2
<html lang="en">
3
  <head>
4
    <title>Chatlayer x Sinch</title>
5
    <meta charset="utf-8" />
6
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
7
    <meta name="viewport" content="width=device-width, initial-scale=1" />
8
​
9
    <style>
10
      #chatlayer-iframe-wrapper {
11
        margin-top: 40px;
12
        flex: 1;
13
        display: flex;
14
        flex-direction: column;
15
        min-width: 100%;
16
        margin-bottom: 40px;
17
​
18
      }
19
​
20

21
      #chatlayer-iframe-wrapper .chatlayer-iframe {
22
        flex: 1;
23
        border: 1px solid #F0F0F0 !important;
24
        box-shadow: 0px 20px 20px -15px rgba(20,20,20,0.1) !important;
25
      }
26

27
      iframe .chatBalloon-bot {
28
        border-radius: 5px 5px 5px 0px!important;
29
      }
30
​
31

32
      #chatlayer-wrapper {
33
        flex: 1;
34
        padding: 40px;
35
        display: flex;
36
        flex-direction: column;
37
        position: relative;
38
        justify-content: center;
39
        align-items: center;
40
        margin: 0 auto;
41
        width: 50%;
42
        max-width: 600px;
43
      }
44
​
45
      .sinch-logo svg {
46
        fill: white;
47
        height: 40px;
48
      }
49
​
50

51
​
52
      .chatlayer-chatbox-wrapper {
53
        box-sizing: border-box;
54
        position: fixed;
55
        top: 0px;
56
        left: 0px;
57
        min-width: 100vh;
58
        min-height: 100vh;
59
      }
60
​
61
      iframe.chatlayer-iframe {
62
        width: 100%;
63
        font-family: arial!important
64
      }
65
​
66

67
​
68
      iframe.chatlayer-iframe html * {
69
        font-family: Helvetica !important;
70
      }
71
​
72
      html {
73
        height: 100vh;
74
        width: 100vw;
75
      }
76
​
77
      body {
78
        min-height: 100vh;
79
        display: flex;
80
        flex-direction: column;
81
        background: #f8f8f8;
82
​
83
      }
84
​
85
    </style>
86

87
    <script>
88
​
89
    function initChatlayer() {
90
      var time = (new Date()).getTime();
91
      console.log(time)
92
      var cl = chatlayer({ "autoOpen": "true", "lang":"en", wrapper: document.querySelector("#chatlayer-iframe-wrapper"), sessionId: `YOUR NAME-demo.glitch.me.${time}` })
93
      cl.open();
94
    }
95
​
96
    </script>
97
    <script src="Please enter the SDK link you’ve copied from the chat widget on the Chatlayer platform here " onload="chatlayer()" async></script>
98
  </head>
99
​
100
  <body>
101
​
102
    <div id="chatlayer-wrapper">
103
      <div id="chatlayer-iframe-wrapper">
104
               </div>
105
    </div>
106
    <div style="display:flex;flex-direction:colum;justify-content: center;">
107
   </div>
108
​
109
  </body>
110
​
111
</html>
112
​
113
-------------------
Copied!

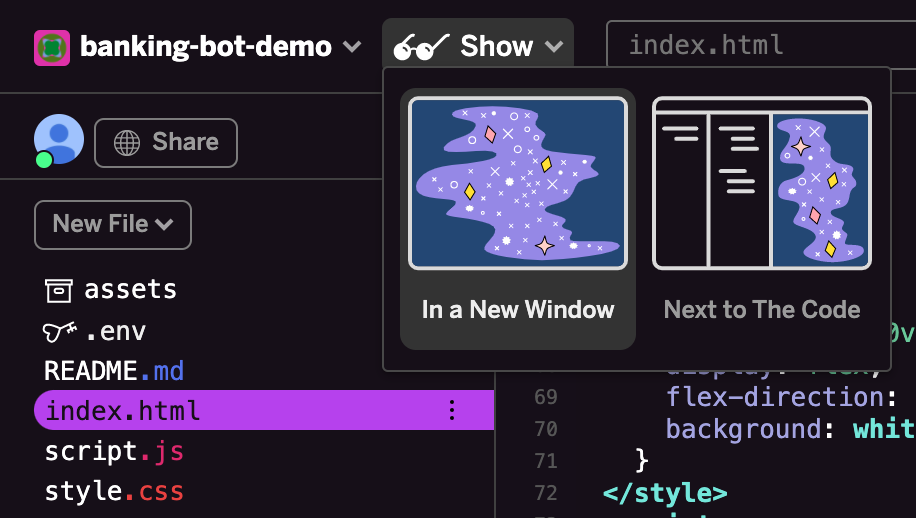

Now check your website by clicking on ‘Show’ and then ‘In a New Window’ (see left top corner)
And there you go! A quick and easy page to show off your amazing bot!
